TOTO ACCESSORIES

A WASHLET only looks and performs correctly when it is installed with the official TOTO connecting hardware. This category covers connecting sets for hidden connections, remote control stands, mini ball valves and other genuine components specified for UK WASHLET and NEOREST installations.

TOTO accessories: what each part does

TOTO specifies a particular connecting set for each WASHLET and pan, so that the water hose runs hidden through the ceramic or frame. The table lists the genuine TOTO parts we supply, with the installation each one is made for.

PartCodeForDetails
SP10695UN connecting setSP10695UNRG, RX, SX, RW and SW on a wall-hung pan with the TOTO WC frameHose 1,400 mm, G3/8 connections, 0.4 kg
HM183 connecting setHM183NEOREST WX1 with the TOTO WC frameHoses of 1,617 mm and 700 mm, G3/8 connections, 0.4 kg
Connecting set for RP back-to-wallTCA564WASHLET RW on the RP back-to-wall pan (CW563Y#XW)Hose 500 mm, R3/8 connections
Connecting set for RP close-coupledTCA567WASHLET RG on the RP close-coupled pan (CW561Y#XW) with ceramic cisternHose 1,270 mm, R3/8 connections, hidden
HM184 auto flush motorHM184Auto flush WASHLET models and NEOREST WX1, in the WH183ET frame or WH183ETNF cistern59 × 101 × 154 mm, 0.5 kg, includes the cable to the WASHLET
Remote control standYH63SDT1NEOREST WX1 (all three finishes)Floor-standing, with integrated paper holder; 260 × 260 × 845 mm, 9.82 kg; chrome-finished brass

Key features

Always match the connecting set to your seat and ceramic – the wrong kit can compromise both the appearance and the warranty position of the installation.

Integrated Design

All technology is hidden inside clean, award-winning forms that sit flush with matching ceramics.

Choosing the right part

  • Start with the pan. A wall-hung pan on the TOTO WC frame takes the SP10695UN, or the HM183 for NEOREST WX1. The floor-standing RP pans each have their own set.
  • Add the motor for auto flush. The HM184 is needed only with an auto flush WASHLET or NEOREST WX1, and only in TOTO’s own frame or concealed cistern.
  • Check what is already in your order. Complete kits include the connecting set, and the motor where needed, so they do not need to be ordered separately.

What must be provided on site

TOTO’s References for preparation of the connections (PDF) lists what the installer provides: a cold-water supply ending in a 3/8-inch male stop valve, at 0.1 to 1.0 MPa; a 220–240 V power supply brought out as a 400 mm flexible cord for the Hirschmann connector supplied with the WASHLET; a 30 mA residual current device that disconnects all poles; and a means of isolating the circuit. NEOREST WX1 has its own installation manual, which also requires an earthed supply.

Remote control stand

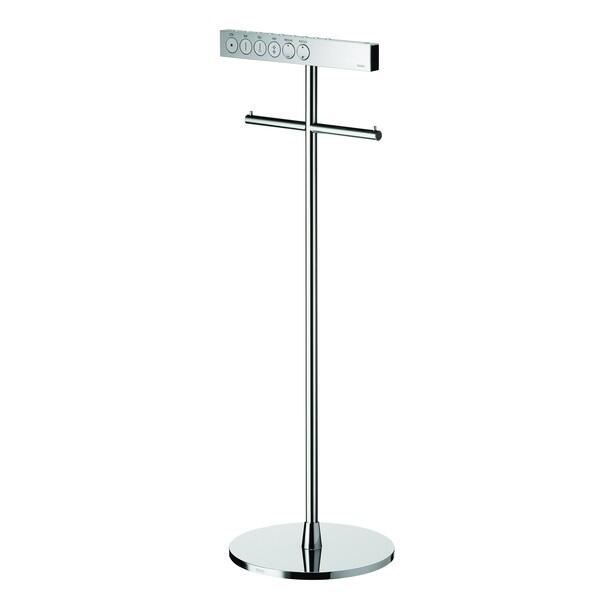

The YH63SDT1 is a floor-standing stand for the NEOREST WX1 remote control, with an integrated paper holder. Full dimensions are on the YH63SDT1 fact sheet (PDF).

Products in this category

TOTO accessories: questions

Which connecting set do I need?

It depends on the WASHLET and the pan. RG, RX, SX, RW and SW on a wall-hung pan and the TOTO WC frame use the SP10695UN connecting set. NEOREST WX1 uses the HM183 connecting set. RW on the RP back-to-wall pan uses TCA564, and RG on the RP close-coupled pan uses TCA567.

Is a stop valve included?

No. TOTO’s connection guide says the cold-water supply must end in a 3/8-inch male stop valve, provided on site, for the WASHLET’s 3/8-inch female hose.

Are the connecting sets included in the kits?

Yes. Every complete installation kit includes the right connecting set: SP10695UN for WASHLET kits and HM183 for NEOREST WX1 kits. Auto flush and NEOREST WX1 kits also include the HM184 auto flush motor.

Can the remote control stand be used with any WASHLET?

TOTO lists the YH63SDT1 stand as an optional accessory for NEOREST WX1, in gloss white, matte white and matte black.

Can I use a TOTO connecting set on a Geberit frame?

TOTO suggests the SP10695UN for preparing the WASHLET water connection on Geberit frames with a Sigma 12 cm concealed cistern and an empty conduit. Send us the frame model and we will confirm before you order.

Need help choosing?

Call us on 0113 35 775 15 and we can check pan, frame and power requirements before you order.

Specifications from TOTO Europe product fact sheets and the connection guide, and the TOTO UK price list.
