TOTO PUSH PLATES
Push plates finish the visible wall opening of a concealed cistern or frame and provide the manual flush control when auto flush is not active. Select the plate that matches your frame and design scheme; for auto flush, TOTO pairs the plate with its frame and the HM184 motor.

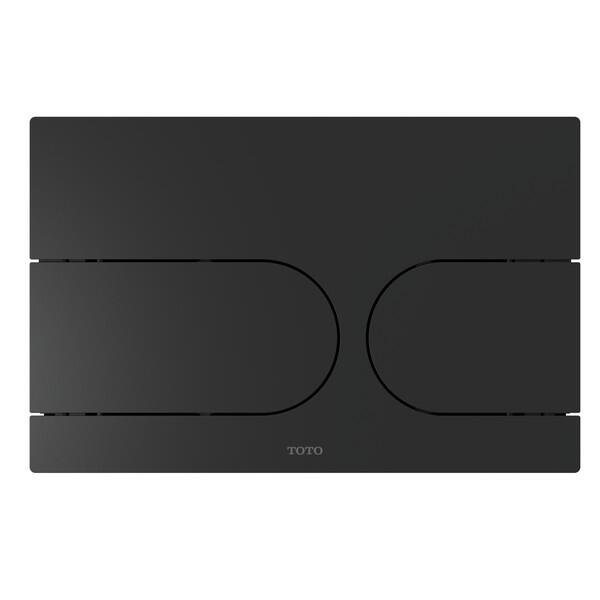

Push plate for NEOREST WX – Matte Black

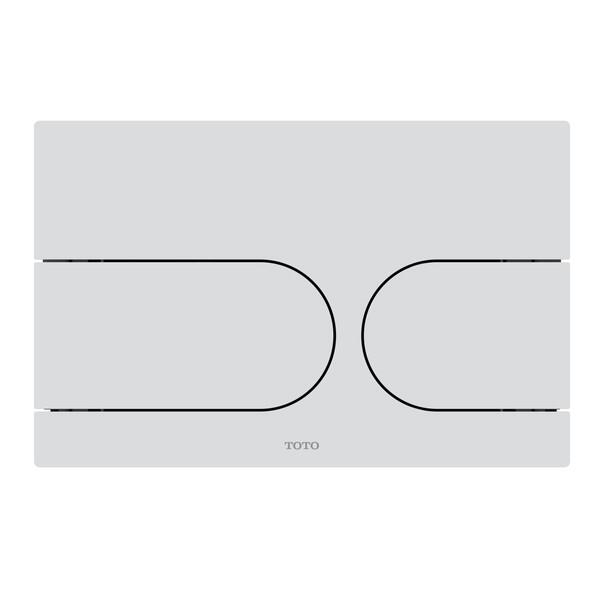

Push plate for NEOREST WX – Matte White

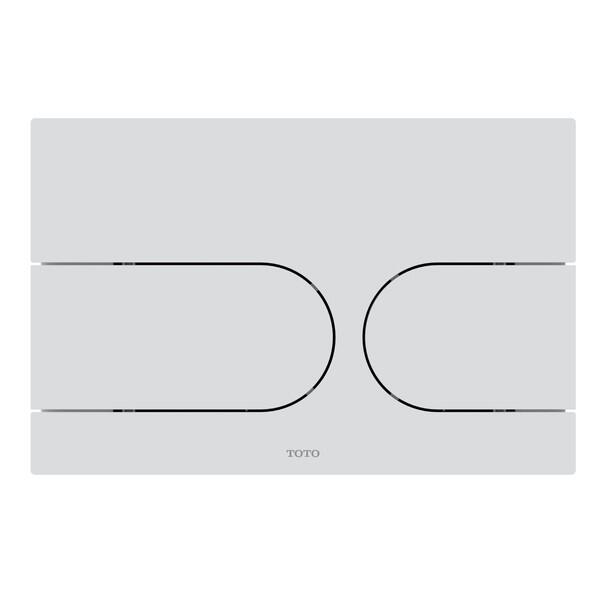

Push plate matte white
Push plate matte black

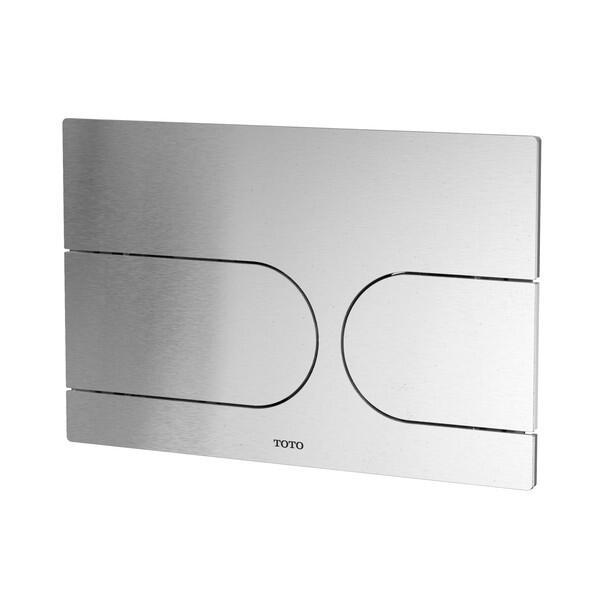

Push plate for NEOREST WX – Silver

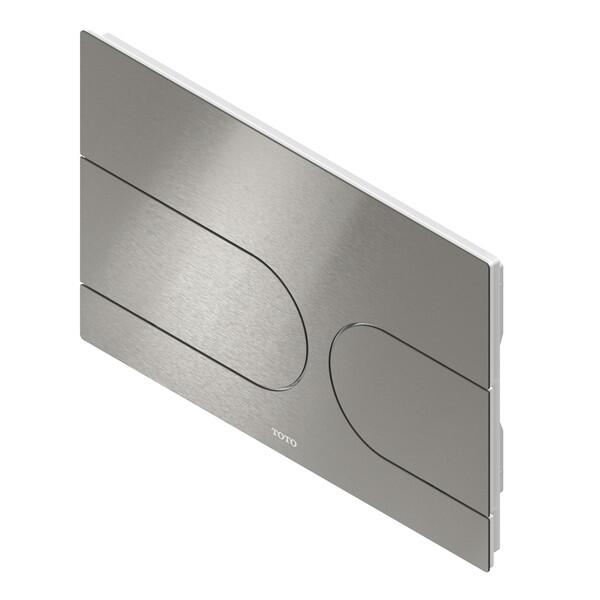

Push plate silver
Choosing a TOTO push plate
TOTO makes two push plate families. The MB175M is a dual-flush plate for the TOTO WC frame (WH183ET) and the concealed cistern (WH183ETNF). The MB177EM is the push plate for NEOREST WX, slimmer and made of aluminium, for the WC frame. Both come in three finishes.
| Plate | Finish | Material | Size (W × D × H) | Weight | Fits |
|---|---|---|---|---|---|
| MB175M#SS | Silver, brushed | Stainless steel | 243 × 12 × 159 mm | 0.65 kg | WH183ET frame, WH183ETNF cistern |
| MB175M#W | Matte white | Stainless steel | 243 × 12 × 159 mm | 0.65 kg | WH183ET frame, WH183ETNF cistern |
| MB175M#B | Matte black | Stainless steel | 243 × 12 × 159 mm | 0.65 kg | WH183ET frame, WH183ETNF cistern |
| MB177EM#S | Silver, brushed | Aluminium | 235 × 6 × 152 mm | 0.42 kg | WH183ET frame |
| MB177EM#W | Matte white | Aluminium | 235 × 6 × 152 mm | 0.42 kg | WH183ET frame |
| MB177EM#B | Matte black | Aluminium | 235 × 6 × 152 mm | 0.42 kg | WH183ET frame |
On the wall, the MB175M covers 243 × 159 mm and the MB177EM 235 × 152 mm; at 6 mm deep, the MB177EM is half the depth of the MB175M.
Key features
Auto Functions
Sensor-based lid, flush and lighting that operate without touching buttons or handles.Matching the plate to the toilet
Choose the finish to match the WASHLET trim or the pan. The silver plates suit gloss white models and silver trim, the matte white plates suit white trim and matte white, and the matte black plates suit matte black. For NEOREST WX1, TOTO pairs each finish with its own MB177EM plate: silver with gloss white, matte white with matte white and matte black with matte black.
Flush volumes
The plate controls a dual flush. The WH183ET frame is preset to 3 and 4.5 litres and the WH183ETNF concealed cistern to 3 and 5 litres. With an auto flush WASHLET and the HM184 auto flush motor, the WASHLET chooses the light or full flush itself, and the plate remains for flushing by hand.
Fitting
TOTO’s installation instructions for the MB177EM warn that the bracket must sit against the wall surface. If it does not, the plate is not correctly installed, which can damage it and trap fingers in use. If you order the plate separately, check the frame or cistern model first, since the MB177EM fits the WH183ET frame only.
Products in this category
TOTO push plates: questions
Which push plate comes with my kit?
The silver MB175M#SS comes with the gloss white RG, RX, SX and SW kits and the silver-trim RW kits. RW white-trim and matte white kits come with the matte white plate, and matte black kits with the matte black plate. NEOREST WX1 kits include the MB177EM in the matching finish.
Can I use an MB177EM plate on the concealed cistern?
No. TOTO lists the MB177EM plates for the WH183ET frame only. The WH183ETNF concealed cistern takes the MB175M plates.
Do I need a push plate with auto flush?
Yes. TOTO’s auto flush works in combination with its frame system and push plate, and the plate remains the manual way to flush on the wall.
Which push plate does NEOREST WX1 need?
An MB177EM in the finish of the WASHLET: silver with gloss white, matte white with matte white and matte black with matte black. It fits the WH183ET frame, and each NEOREST WX1 complete installation kit includes it.
Will a TOTO push plate fit another make of frame?
TOTO lists its push plates only for its own WH183ET frame and WH183ETNF concealed cistern. For other frames, use the plate made for that frame.
Need help choosing?
Call us on 0113 35 775 15 and we can check pan, frame and power requirements before you order.
Specifications from TOTO Europe product fact sheets and installation instructions, and the TOTO UK price list.
