VILLEROY & BOCH TOILET FRAMES

ViConnect frames provide the concealed cistern and structural support for Villeroy & Boch wall-hung shower toilets. We stock the ViConnect frame in the 1120 mm height.

Villeroy & Boch ViConnect WC frame: specifications

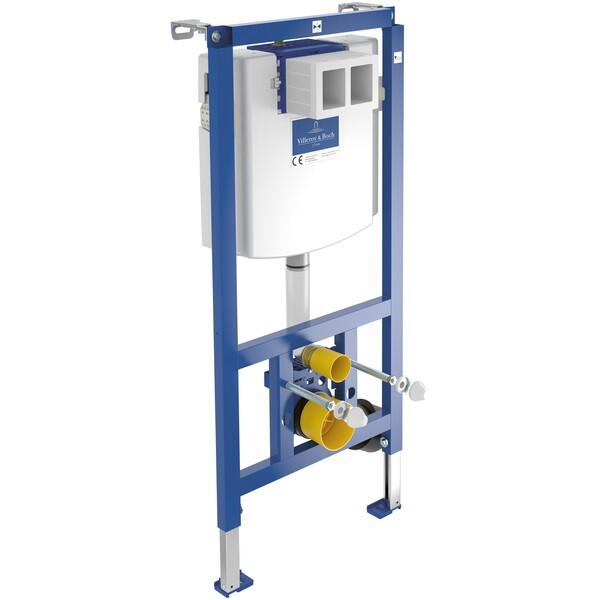

The ViConnect 1120 mm WC frame (92092900) is Villeroy & Boch’s installation system for wall-hung WCs, with a concealed dual-flush cistern. It is the frame we offer for our Villeroy & Boch shower toilet sets.

Key features

Pair with a matching ViConnect flush plate so the visible finish and actuation method suit your bathroom design.

Technical data

SpecificationValue
Article number92092900
Size (W × H × D)525 × 1120 × 135 mm
Weight15.5 kg
MaterialSteel
Foot adjustment0–200 mm
Depth adjustment135–205 mm
Flush volumePre-set 6 / 3 l; large flush 4.5–7.5 l, small flush 3–4 l
Scope of deliveryInstallation system, cistern, installation kit
Flush plateOrdered separately

Features

  • Adjustable flush flow control, suited to rimless toilets
  • The large flush can be reduced from 6 to 4.5 l
  • Self-locking feet that suit UW50 and UW75 U-profiles
  • For dry-wall construction with a plasterboard covering, or installation against a solid brick wall

Using it with a shower toilet

Tivo, Supreo and Supreo Select are all wall-hung and need a concealed cistern installation system. A shower toilet also needs an earthed power supply and a cold water connection at the toilet position, so plan these with your installer using the installation instructions for your chosen model. Finish with one of our ViConnect flush plates.

Download the ViConnect frame installation instructions (PDF).

Products in this category

ViConnect frame FAQs

How tall is the ViConnect frame?

The ViConnect WC element 92092900 measures 525 mm wide, 1120 mm high and 135 mm deep, and weighs 15.5 kg.

Is the cistern included?

Yes. The frame comes with the concealed cistern and installation kit. The flush plate is ordered separately.

Can I adjust the flush volume?

Yes. The frame is pre-set to a 6 l and 3 l dual flush. The large flush can be set between 4.5 and 7.5 l and the small flush between 3 and 4 l. An adjustable flush flow control suits rimless bowls.

Can it be installed in a stud wall?

Yes. It is designed for dry-wall construction with a plasterboard covering, and can also be installed against a solid brick wall. The self-locking feet suit UW50 and UW75 U-profiles.

Which flush plates fit?

Villeroy & Boch ViConnect flush plates, which connect to the cistern with flexible cables and a bayonet joint. We stock the E100, E200, E300, M200 and M300 series.

Need help choosing?

Call us on 0113 35 775 15 and we can check pan, frame and power requirements before you order.
