TOTO AUTO FLUSH
Auto flush removes the need to touch a button after use. On most WASHLET models this is achieved with a TOTO Auto Flush Motor linked to a compatible WC Frame and push plate; the WASHLET signals the motor when you stand up.
TOTO WASHLET for NEOREST WX1 Matte White
TOTO WASHLET for NEOREST WX1 Matte Black
TOTO WASHLET for NEOREST WX1
TOTO WASHLET RW Auto Flush Pan + Seat Set – Matte Black + matching pan
TOTO WASHLET RW Auto Flush Pan + Seat Set – Matte White + matching pan
TOTO WASHLET RW auto flush Matte White
TOTO WASHLET RW auto flush Matte Black
TOTO WASHLET SW Auto Flush Pan + Seat Set – Gloss White + matching pan
TOTO WASHLET RW Auto Flush Pan + Seat Set – Silver Trim + matching pan
TOTO WASHLET RW Auto Flush Pan + Seat Set – White Trim + matching pan
TOTO WASHLET RW auto flush with silver trim (new remote)
TOTO WASHLET RW auto flush with white trim
TOTO WASHLET SW auto flush

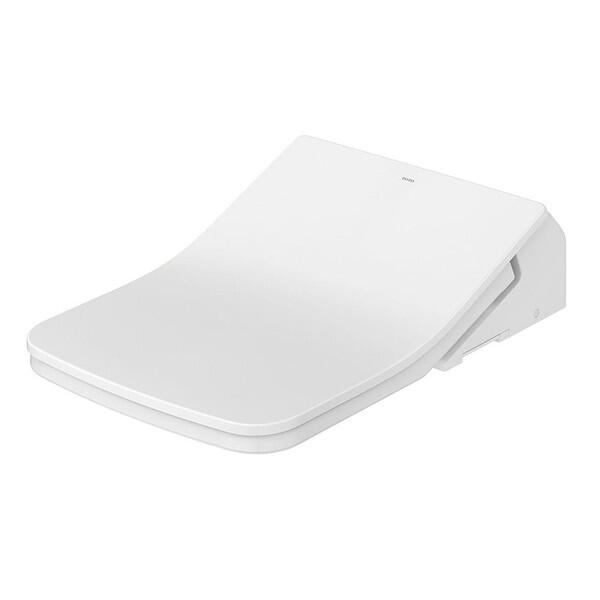

TOTO WASHLET SX EWATER+ auto flush

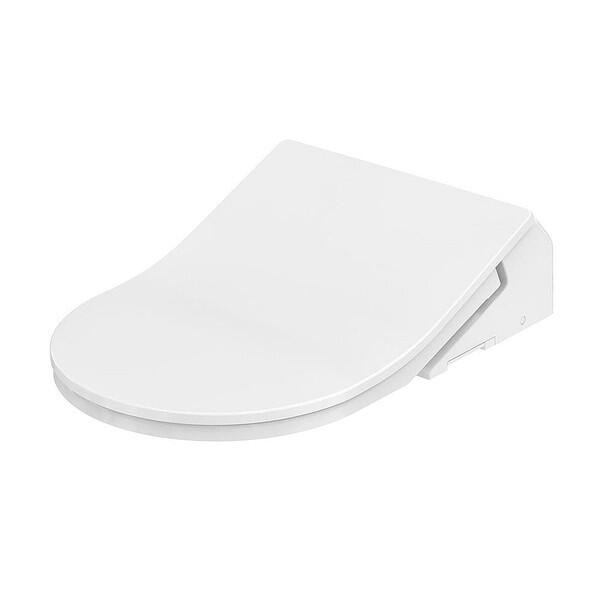

TOTO WASHLET RX EWATER+ auto flush

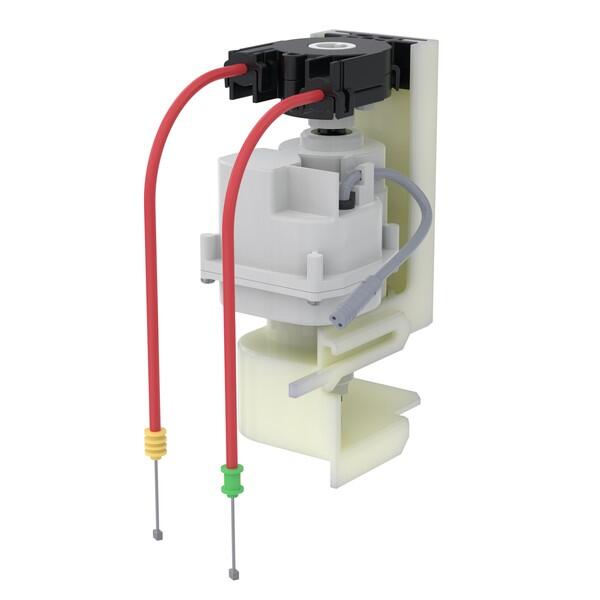

Auto Flush Motor incl. connection cable to WASHLET
How TOTO auto flush works
TOTO describes auto flush as an additional feature that works in combination with its frame system and push plate. Four parts work together: a WASHLET in its auto flush version, the TOTO WC frame (WH183ET) or the concealed cistern (WH183ETNF), the HM184 auto flush motor fitted inside it, and a TOTO push plate. The motor comes with the cable that connects it to the WASHLET, which tells it when to flush.
Key features
On NEOREST WX1, auto flush is built in, but the HM184 motor is ordered separately. Choose genuine TOTO motors and frames so the seat, ceramics and flush act as one system.
Auto Functions
Sensor-based lid, flush and lighting that operate without touching buttons or handles.When it flushes
- After you stand up. The flush follows about 10 seconds later. On RX and SX auto flush the delay can be set to 5, 10 or 15 seconds.
- Light or full flush. The WASHLET chooses from how long the seat was occupied: a light flush for about 6 to 30 seconds, a full flush for about 30 seconds or more.
- Lid closed before flushing. RW auto flush and NEOREST WX1 have an optional setting that closes the lid before the toilet flushes.
- Standing use. On RW auto flush and NEOREST WX1, with automatic flushing, the automatic lid and that setting switched on, the seat and lid close when a standing user moves away and the toilet then flushes. RX and SX auto flush do not flush automatically after standing use.
Auto flush models
| Model | Lid | Warm-air dryer | Pan + seat set | Complete kit |
|---|---|---|---|---|
| NEOREST WX1 | Sensor, opens and closes | Yes, 35–60 °C | NEOREST sets | NEOREST kits |
| RW auto flush | Sensor, opens and closes | Yes, 37–55 °C | RW auto flush set | RW auto flush kit |
| SW auto flush | Sensor, opens and closes | Yes, 37–55 °C | SW auto flush set | SW auto flush kit |
| RX EWATER+ auto flush | Manual, soft-closing | No | RX auto flush set | RX auto flush kit |
| SX EWATER+ auto flush | Manual, soft-closing | No | SX auto flush set | SX auto flush kit |
On NEOREST WX1, automatic flushing is built in rather than a separate model, but it still needs the HM184 motor in the frame, which is ordered separately unless you choose a complete kit.
Planning auto flush
The HM184 measures 59 × 101 × 154 mm and weighs 0.5 kg. TOTO lists it for the WH183ET frame and the WH183ETNF concealed cistern only. Both are prepared for the motor; automatic flushing is not listed with any other make of frame. An auto flush WASHLET has the same water and power connections as the standard model: see TOTO’s References for preparation of the connections (PDF).
For a floor-standing installation, TOTO lists RW auto flush with the RP back-to-wall pan, the WH183ETNF concealed cistern and the HM184 motor. More detail is on the HM184 fact sheet (PDF).
Products in this category
TOTO auto flush: questions
Can I add automatic flushing to a standard WASHLET?
No. Automatic flushing needs the auto flush version of the WASHLET, which is a separate model. Choose it when you order; the motor and frame can be fitted at the same time.
Will it flush if I only sit down briefly?
Not automatically. On RX and SX auto flush, TOTO’s manual says the toilet does not flush by itself if the seat was occupied for less than about 6 seconds; flush from the remote control instead.
Can automatic flushing be switched off?
Yes. Auto flushing has an on/off setting on the remote control, and the delay before the flush can also be changed.
Can I still flush by hand?
Yes. The remote control has full and light flush buttons, and the system includes a TOTO push plate on the wall.
Is the motor included in the kits?
Yes. Every auto flush complete installation kit and every NEOREST WX1 kit includes the HM184 auto flush motor. If you order a pan + seat set or a seat only, add the motor, frame and push plate separately.
Need help choosing?
Call us on 0113 35 775 15 and we can check pan, frame and power requirements before you order.
Specifications from TOTO Europe: the WASHLET technical details and functions overviews, the RX/SX, RW auto flush and NEOREST WX1 instruction manuals, product fact sheets and the TOTO UK price list.
