TOTO WC PANS
TOTO ceramics for WASHLET and NEOREST are rimless, finished with CEFIONTECT ultra-smooth glaze, and engineered around Tornado Flush jet geometry. The open bowl surface has nowhere for waste to hide, and the glaze helps residue slide away with less cleaning effort.
TOTO NEOREST WX1 wall-hung pan – Matte White (for WASHLET TCF95580GEU#MW)
TOTO NEOREST WX1 wall-hung pan – Matte Black (for WASHLET TCF95580GEU#MBL)

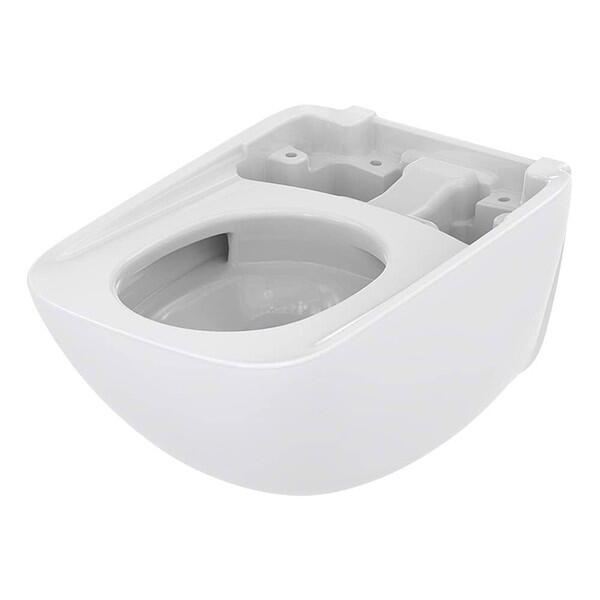

TOTO NEOREST WX1 wall-hung pan – Gloss White (for WASHLET TCF95180GEU)

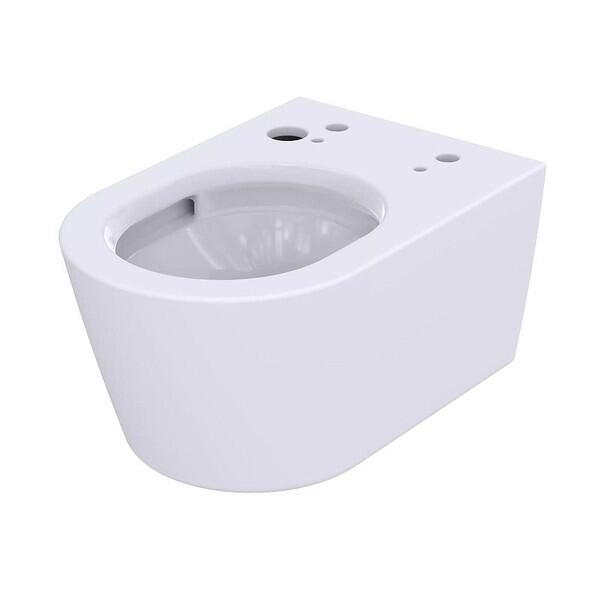

TOTO RP wall-hung pan – Matte White (for WASHLET RW matte white)

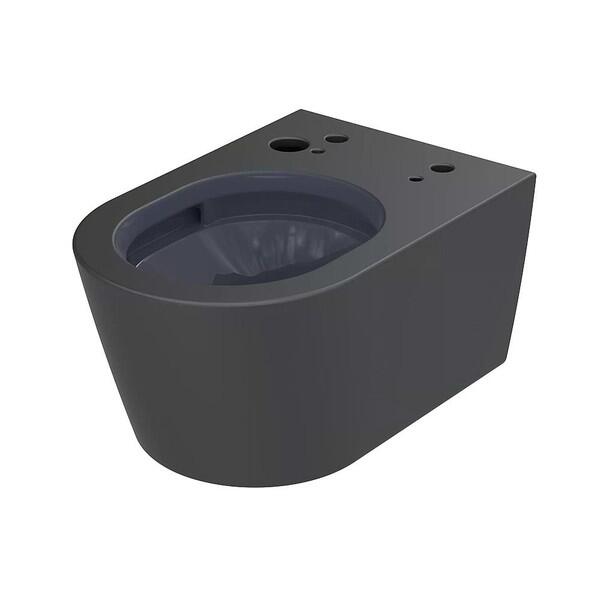

TOTO RP wall-hung pan – Matte Black (for WASHLET RW matte black)

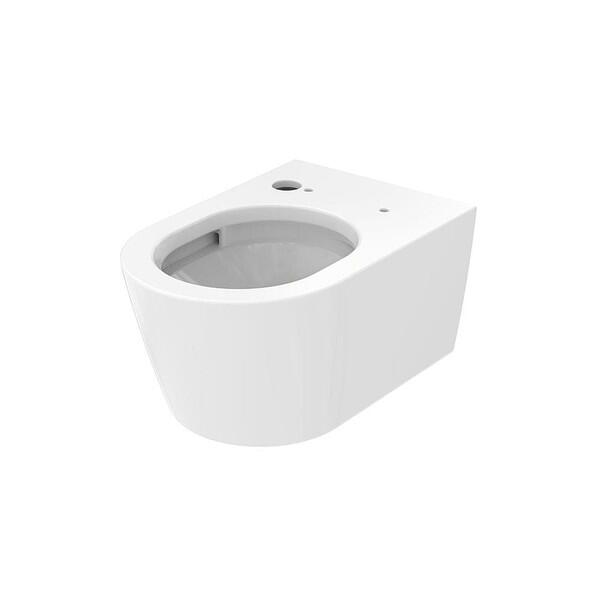

TOTO RP wall-hung pan – Gloss White (for WASHLET RW & RX)

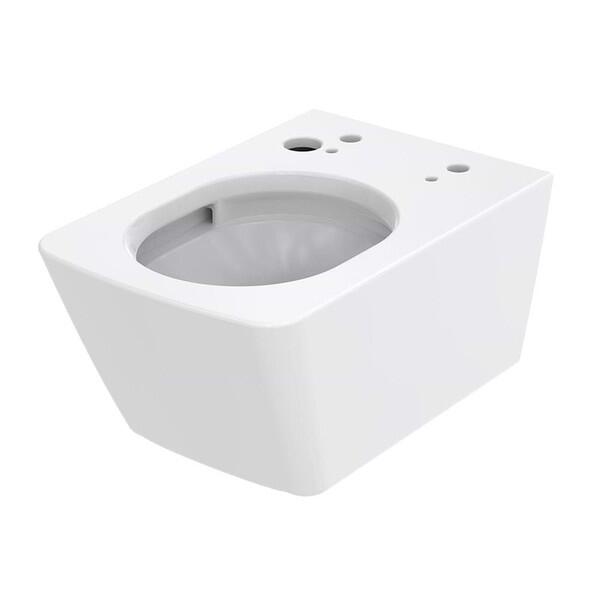

TOTO SP wall-hung pan – Gloss White (for WASHLET SW & SX)

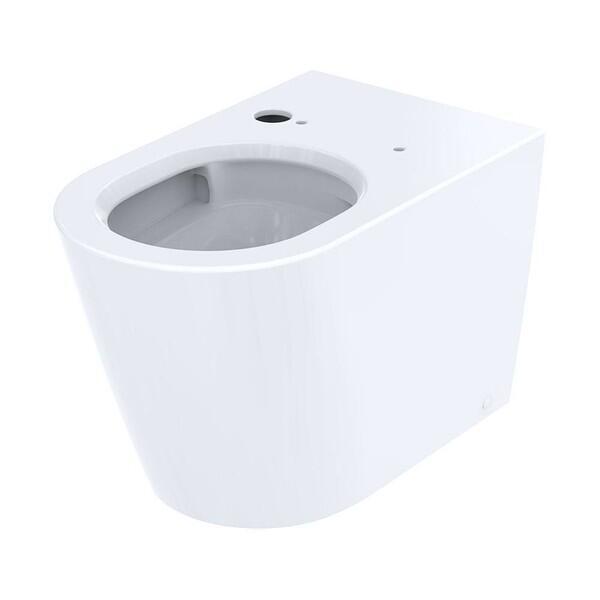

TOTO RP back-to-wall floor-standing pan – Gloss White (for WASHLET RW)

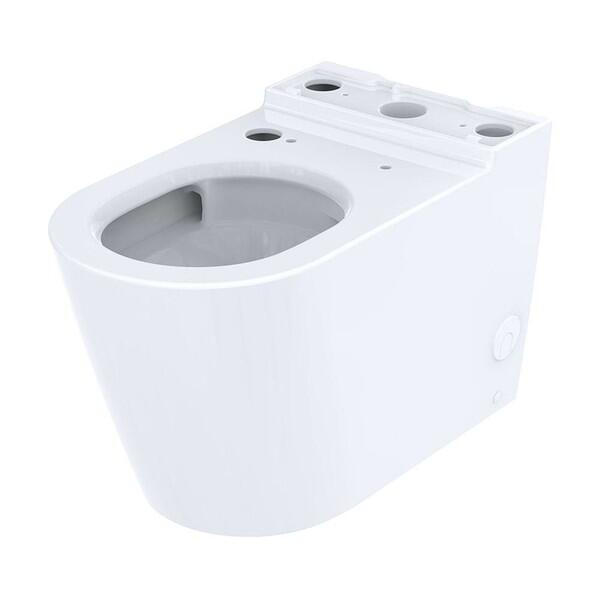

TOTO RP close-coupled pan – Gloss White (for WASHLET RG)

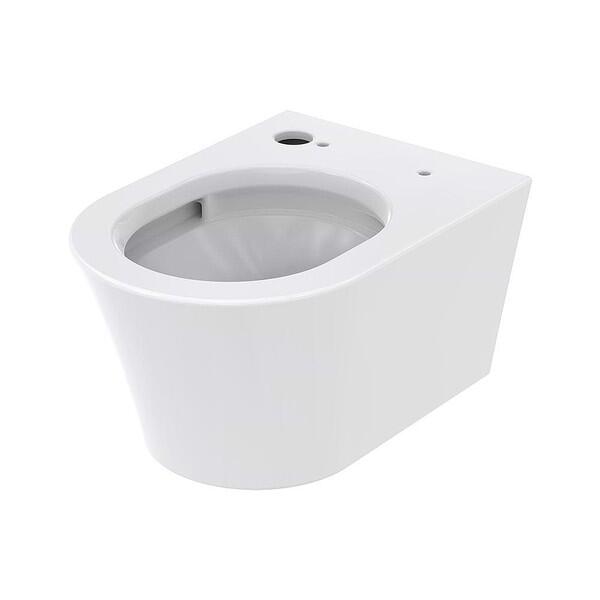

TOTO GP wall-hung pan – Gloss White (for WASHLET RG)
Which TOTO WC pan fits your WASHLET?
TOTO designs each WASHLET for a specific pan, so the seat and the ceramic fit and seal correctly. Every pan in this range is rimless, with Tornado flush. Use the table to match the pan to your WASHLET before you order.
| Pan | Type | Size (W × D × H) | For WASHLET | Finishes |
|---|---|---|---|---|
| GP (CW553EY) | Wall-hung | 380 × 540 × 335 mm | RG | Gloss white |
| RP (CW542ERY) | Wall-hung | 380 × 580 × 335 mm | RW, RX | Gloss white, matte white, matte black |
| SP (CW522ERY) | Wall-hung | 380 × 580 × 335 mm | SW, SX | Gloss white |
| NEOREST WX1 (CW927PZY) | Wall-hung | 444 × 660 × 367 mm | NEOREST WX1 | Gloss white, matte white, matte black |
| RP close-coupled (CW561Y) | Floor-standing | 380 × 700 × 438 mm | RG | Gloss white |
| RP back-to-wall (CW563Y) | Floor-standing | 380 × 640 × 410 mm | RW | Gloss white |
Key features
Always match the pan to the seat series (for example RP pans with RW/RX, SP with SW/SX, dedicated NEOREST pans with WX1). The official connecting set completes the installation.
Rimless Design
Ceramic bowl with no hidden rim channel, eliminating the hardest-to-clean area of a traditional toilet.CEFIONTECT
Ultra-smooth, hydrophilic ceramic glaze that gives waste almost nowhere to cling.Tornado Flush
Powerful two- or three-jet flush that swirls and ejects waste efficiently while using less water.Water-Saving Flush
Efficient dual-flush technology with a full flush as low as 4.5 litres.Wall-hung pans
The wall-hung pans have a 4.5-litre flush and mount on the TOTO WC frame (WH183ET). The WASHLET connects with the connecting set with hidden connections (SP10695UN), or the NEOREST WX connecting set (HM183) for NEOREST WX1, and the flush is operated by a TOTO push plate.
Floor-standing pans
The RP close-coupled pan sits with its ceramic cistern and takes the WASHLET RG using the TCA567 connecting set. The RP back-to-wall pan takes the WASHLET RW with white or silver trim, using the TCA564 connecting set, with the WH183ETNF concealed cistern.
Buying a pan with its seat
Every wall-hung pan here is also sold with its WASHLET as a pan + seat set, or with the frame, connecting set and push plate as a complete installation kit. Not sure which you need? Read Kit, set or frames?.
Wall-hung pan data
| Pan | Weight | Standard TOTO seat (without WASHLET) | FlexCover |
|---|---|---|---|
| GP (CW553EY) | 29 kg | TC524EU, slim, soft close | TCA570 |
| RP (CW542ERY) | 30 kg | TC513Q, slim, soft close | TCA571 |
| SP (CW522ERY) | 30 kg | TC512G, slim, soft close | TCA571 |
| NEOREST WX1 (CW927PZY) | 36 kg | Not applicable: used only with the WASHLET for NEOREST WX1 | Not applicable |
TOTO rates these pans for a flush volume of 3/4.5 to 6 litres. The concealed cistern in the TOTO WC frame is preset to 3/4.5 litres.
Set-out on the TOTO WC frame
At TOTO’s reference set-out, the two fixing bolts are 180 mm apart and 320 mm above the finished floor, the centre of the waste outlet is 220 mm above the floor, and the top of the pan is 410 mm from the floor. These figures apply to the GP, RP, SP and NEOREST WX1 pans. The frame’s legs adjust from 0 to 200 mm to allow for the floor build-up. The water and power for the WASHLET come through openings in the back of the pan, so they must be positioned as shown in TOTO’s References for preparation of the connections (PDF).
Products in this category
TOTO WC pans: questions
How do I clean a TOTO WC pan?
TOTO’s CEFIONTECT glaze needs very little special care. TOTO recommends regular cleaning with a clean, damp cloth (microfibre is suitable). Against limescale, use a mildly acidic cleaner, for example one with vinegar or citric acid, and always choose cleaners without abrasives. A conventional toilet cleaner and brush can also be used.
Which cistern goes with a floor-standing TOTO pan?
The RP close-coupled pan takes the RP ceramic cistern (SW561DY), a 3/4.5-litre dual-flush cistern with a rear water inlet. The RP back-to-wall pan uses the WH183ETNF concealed cistern, which takes the MB175M push plates and the HM184 auto flush motor.
Can I use a TOTO wall-hung pan before I buy the WASHLET?
Yes. Fit the slim TOTO soft-close seat and the FlexCover listed in the table above. When you upgrade, only the power supply behind the pan needs to be in place, and on the TOTO frame the pan does not need to come off the wall. If you plan to upgrade, have the supply prepared during the build.
For current prices and stock, see each product page. For advice, call us on 0113 35 775 15 or visit our showroom at 248 Meanwood Road, Leeds, by appointment.
Need help choosing?
Call us on 0113 35 775 15 and we can check pan, frame and power requirements before you order.
Specifications from TOTO Europe: the WASHLET technical details and functions overviews, product fact sheets and the TOTO UK price list.
