TOTO WASHLETS - ALL RANGES
TOTO organises WASHLET® into clear design and feature families so you can match both the look of the bathroom and the level of technology you want.
Comparing the TOTO WASHLET ranges
The six ranges differ in shape, size and features. All share the core WASHLET specification: rear, soft rear and front washing with adjustable pressure, temperature and wand position; a continuous-flow heater; a heated seat adjustable from 28 to 36 °C; a deodoriser; a soft-closing seat; a remote control with user memory; energy saving and descaling.
| Range | Shape | TOTO pan | WASHLET size (W × D × H) | Warm water | Warm-air dryer | Sensor lid and night light | Auto flush | Maximum power |
|---|---|---|---|---|---|---|---|---|

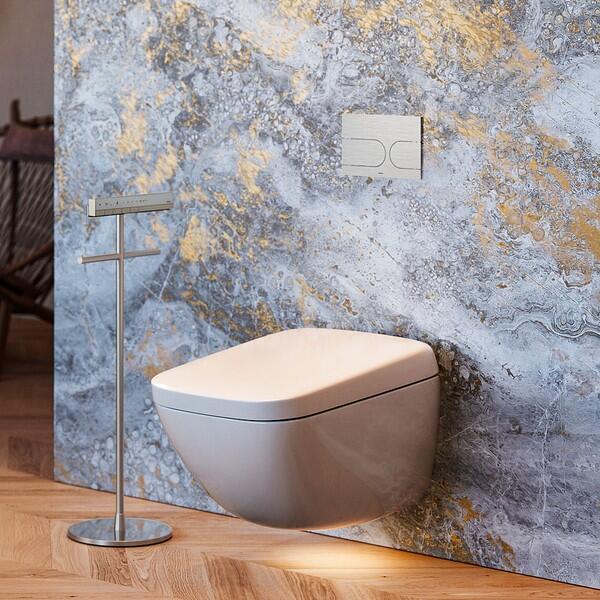

| NEOREST WX1 | Integrated | Own NEOREST pan | 449 × 667 × 122 mm | 30–40 °C | 35–60 °C | Yes | Built in; HM184 motor ordered separately | 1,466–1,480 W |

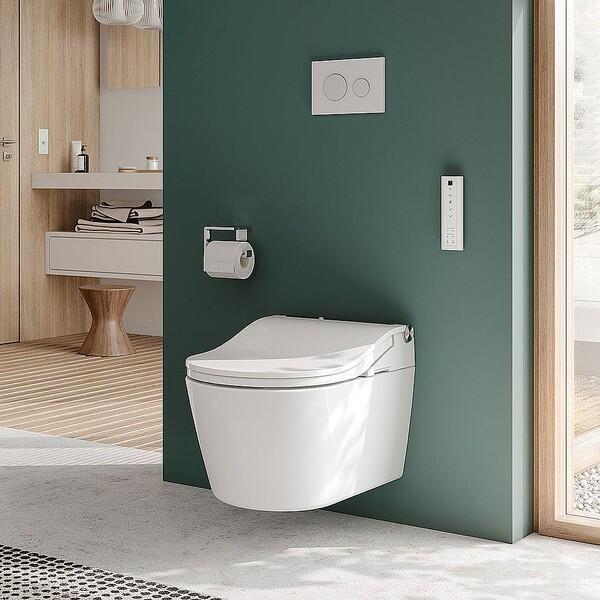

| RW | Curved | RP | 391 × 579 × 108 mm | 30–40 °C | 37–55 °C | Yes | Auto flush version | 1,455–1,468 W |

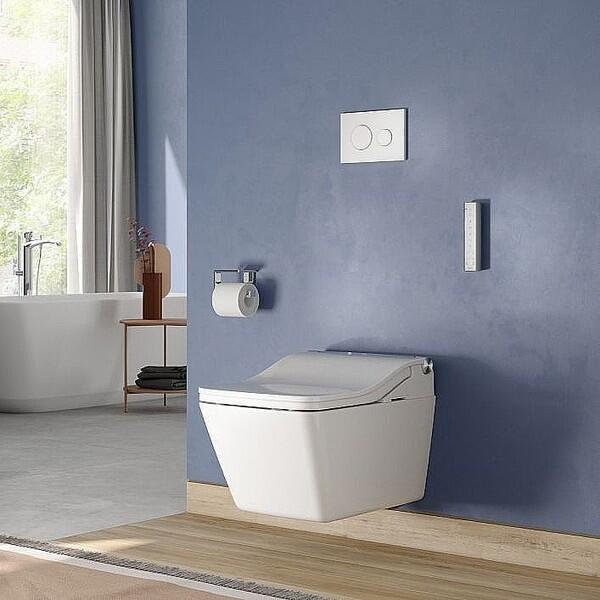

| SW | Angular | SP | 391 × 579 × 108 mm | 30–40 °C | 37–55 °C | Yes | Auto flush version | 1,455–1,468 W |

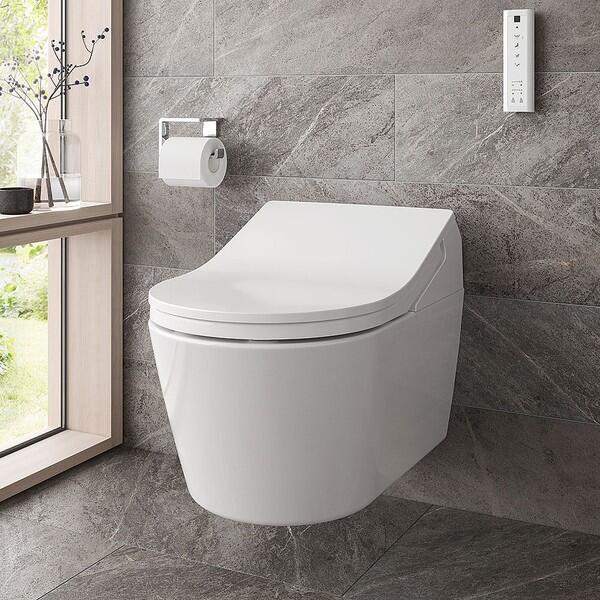

| RX EWATER+ | Curved | RP | 386 × 579 × 146 mm | 35–40 °C | No | No | Auto flush version | 1,437–1,459 W |

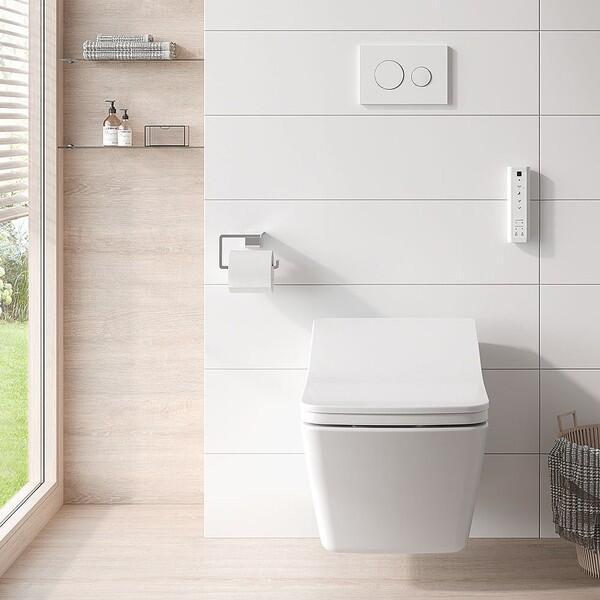

| SX EWATER+ | Angular | SP | 386 × 579 × 146 mm | 35–40 °C | No | No | Auto flush version | 1,437–1,459 W |

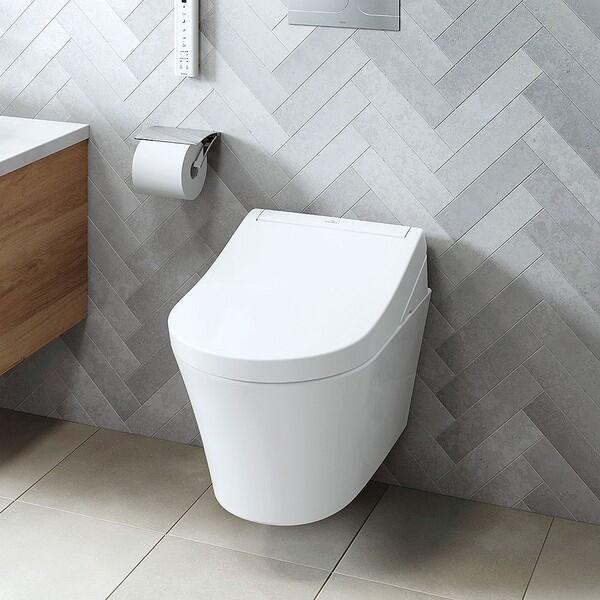

| RG | Compact | GP | 383 × 540 × 130 mm | 35–40 °C | No | No | No | 1,482–1,495 W |
Key features
NEOREST® is the fully integrated luxury system (seat + matching ceramic). WASHLET RW offers a softly curved premium seat with the full hygiene and comfort package, including dryer. SW is the angular equivalent for SP pans. RX and SX focus on EWATER+ hygiene in minimal curved or angular forms (without dryer). RG is the compact, accessible entry point with the essential cleansing and comfort features.
Select a range below to see models, finishes and the technologies included.
Warm Water Nozzle
Individually adjustable warm-water wand with self-cleaning action.EWATER+ for the Wand
Electrolysed water that automatically cleans the wand inside and out after every use.EWATER+ for the Bowl
On NEOREST WX1, RW and SW: electrolysed water sprayed onto the ceramic after flushing to keep the bowl cleaner for longer. RX, SX and RG use EWATER+ for the wand.PREMIST
A fine mist of water sprayed onto the bowl before use so waste is less able to stick.Heated Seat
Individually adjustable seat temperature for year-round comfort.Warm Air Dryer
Adjustable warm-air dryer that follows the water cleanse so you finish dry and comfortable.Rimless Design
Ceramic bowl with no hidden rim channel, eliminating the hardest-to-clean area of a traditional toilet.Integrated Design
All technology is hidden inside clean, award-winning forms that sit flush with matching ceramics.How to choose
- Shape. RW and RX are curved; SW and SX are angular. RG is the smallest unit and suits a cloakroom, and NEOREST WX1 is a single integrated design.
- Drying and sensors. If you want a warm-air dryer, an automatic lid and a night light, choose NEOREST WX1, RW or SW.
- Automatic flushing. Decide before ordering, since the auto flush versions of RW, SW, RX and SX are separate models. See TOTO auto flush.
- How you buy. Each range is sold as a WASHLET seat, a pan + seat set or a complete installation kit with frame and push plate.
Installation is the same across the WASHLET ranges
RG, RX, SX, RW and SW share one set of connection requirements, published in TOTO’s References for preparation of the connections (PDF). Each needs a cold-water supply at 0.1 to 1.0 MPa and a 220–240 V power supply behind the pan, with a 30 mA residual current device. No hot-water feed is needed. On the TOTO WC frame (WH183ET), every model connects through the SP10695UN connecting set. NEOREST WX1 has its own installation manual and uses the HM183 connecting set.
TOTO WASHLET ranges: questions
Which TOTO WASHLET is the most compact?
RG. It measures 383 × 540 × 130 mm and weighs 5 kg, and its GP pan projects 540 mm from the wall. RX, SX, RW and SW are 579 mm deep.
Which ranges have a warm-air dryer?
NEOREST WX1, RW and SW. RX, SX and RG have no dryer.
What is the difference between RX and SX?
The shape. RX is curved and SX is angular; TOTO gives the two the same technical data. RW and SW are the equivalent curved and angular pair with a dryer and sensor lid.
Which ranges are available with automatic flushing?
RW, SW, RX and SX each have an auto flush version, which works with the TOTO WC frame or concealed cistern, the HM184 motor and a TOTO push plate. NEOREST WX1 has automatic flushing built in, but it also needs the HM184 motor, which is ordered separately unless you choose a complete kit. RG has no auto flush version.
Which pan does each WASHLET fit?
In our sets and kits, RG goes on the GP pan, RX and RW on the RP pan, SX and SW on the SP pan, and NEOREST WX1 on its own pan. All are wall-hung and made ready for a WASHLET; see TOTO WC pans.
Do all WASHLETs have a continuous-flow heater?
Yes. Every TOTO WASHLET heats water as it is used, so the warm water does not run out.
Need help choosing?
Call us on 0113 35 775 15 and we can check pan, frame and power requirements before you order.
Specifications from TOTO Europe: the WASHLET technical details and functions overviews, product fact sheets and the TOTO UK price list.
