TOTO NEOREST
NEOREST® is TOTO’s flagship shower toilet.
TOTO NEOREST WX1 Pan + Seat Set – Washlet + Wall-Hung Pan (Matte Black)
TOTO NEOREST WX1 Pan + Seat Set – Washlet + Wall-Hung Pan (Matte White)
TOTO NEOREST WX1 Pan + Seat Set – Washlet + Wall-Hung Pan (Gloss White)
TOTO WASHLET for NEOREST WX1 Matte White
TOTO WASHLET for NEOREST WX1 Matte Black
TOTO WASHLET for NEOREST WX1
TOTO NEOREST WX1 wall-hung pan – Matte White (for WASHLET TCF95580GEU#MW)
TOTO NEOREST WX1 wall-hung pan – Matte Black (for WASHLET TCF95580GEU#MBL)
TOTO NEOREST WX1 wall-hung pan – Gloss White (for WASHLET TCF95180GEU)
Push plate for NEOREST WX – Matte Black
Push plate for NEOREST WX – Matte White
Push plate for NEOREST WX – Silver

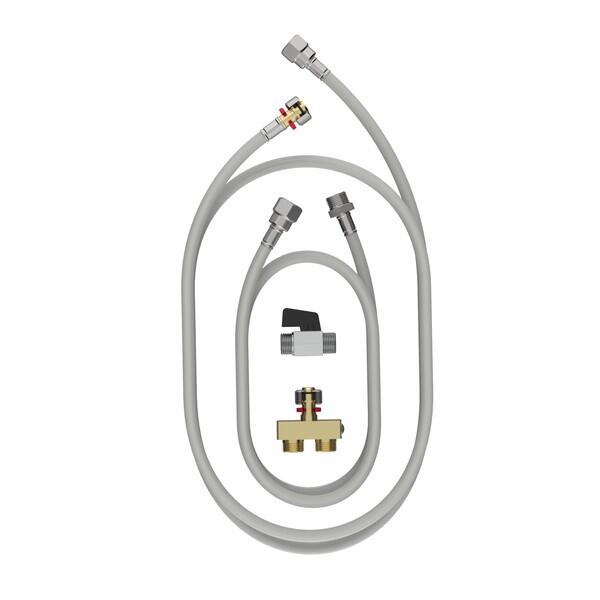

Connecting set for NEOREST WX
NEOREST WX1 buyer’s guide
NEOREST WX1 is one system: the WASHLET unit sits on its own wall-hung pan, and the pair is installed on the TOTO WC frame. Each of the three finishes can be ordered as the WASHLET alone, the pan alone, a pan + seat set, or a complete installation kit with frame, connecting set, auto flush motor and push plate.
| Finish | WASHLET | Pan | Push plate | Pan + seat set | Complete kit |
|---|---|---|---|---|---|
| Gloss white | TCF95180GEU | CW927PZY | MB177EM#S (silver) | Gloss white set | Gloss white kit |
| Matte white | TCF95580GEU#MW | CW927PMZY#MW | MB177EM#W | Matte white set | Matte white kit |
| Matte black | TCF95580GEU#MBL | CW927PMZY#MBL | MB177EM#B | Matte black set | Matte black kit |
Key features
Pure luxury. Visionary technology in an exquisitely integrated form.
The UK range centres on NEOREST WX1: adjustable warm-water cleansing, EWATER+ for wand and bowl, PREMIST, CEFIONTECT glaze, rimless design and Tornado Flush, plus heated seat, warm-air dryer, deodoriser, sensor-activated lid, night light and multi-user remote memory.
Available in gloss white, matt white and matt black. Cables and water connections are routed through the ceramic so the finished installation looks like a pure piece of sanitaryware. NEOREST WX2 with ACTILIGHT is not available for the UK market.
Warm Water Nozzle
Individually adjustable warm-water wand with self-cleaning action.EWATER+ for the Wand
Electrolysed water that automatically cleans the wand inside and out after every use.EWATER+ for the Bowl
Electrolysed water sprayed onto the ceramic after flushing to keep the bowl cleaner for longer.PREMIST
A fine mist of water sprayed onto the bowl before use so waste is less able to stick.Heated Seat
Individually adjustable seat temperature for year-round comfort.Warm Air Dryer
Adjustable warm-air dryer that follows the water cleanse so you finish dry and comfortable.Deodoriser
Active filter system that draws air from the bowl and removes odours during and after use.Auto Functions
Sensor-based lid, flush and lighting that operate without touching buttons or handles.Rimless Design
Ceramic bowl with no hidden rim channel, eliminating the hardest-to-clean area of a traditional toilet.CEFIONTECT
Ultra-smooth, hydrophilic ceramic glaze that gives waste almost nowhere to cling.Tornado Flush
Powerful two- or three-jet flush that swirls and ejects waste efficiently while using less water.Integrated Design
All technology is hidden inside clean, award-winning forms that sit flush with matching ceramics.Specifications
| Item | NEOREST WX1 |
|---|---|
| WASHLET unit (W × D × H) | 449 × 667 × 122 mm, 9 kg |
| Gloss white pan (W × D × H) | 444 × 660 × 367 mm, 36 kg |
| Height of pan rim | 410 mm above the finished floor |
| Flush volume | 3/4.5 to 6 litres; the frame is preset to 3/4.5 litres |
| Warm water | 30–40 °C, continuous-flow heater |
| Heated seat | 28–36 °C |
| Warm-air dryer | 35–60 °C, about 0.25 m³/min |
| Deodoriser | About 0.16 m³/min |
| Power | 220–240 V, 50 Hz; 1,466–1,480 W maximum |
| Water pressure | 0.1–1.0 MPa (1–10 bar) |
Functions unique to WX1
- Automatic flushing built in. With the HM184 auto flush motor fitted in the TOTO frame (ordered separately, or included in our complete kits), WX1 flushes by itself about 10 seconds after you stand up. It chooses the flush from how long the seat was occupied: a light flush for about 6 to 30 seconds, a full flush for longer.
- Four-user memory. Up to four people can register their preferred water pressure, wand position and warm-water temperature.
- Energy saving that learns. WX1 detects the household’s usage habits and switches to energy-saving mode accordingly. A power-saving timer can also be set for 3, 6 or 9 hours.
- Adjustable lid sensor. The distance at which the lid opens can be changed to suit the room.
- Seamless seat ring and Clean Resin, a silicone-containing material used for the wand, seat and functional unit.
Installation notes
The TOTO WC frame (WH183ET) carries the pan and contains the flush mechanism. The HM183 connecting set supplies water to the WASHLET through the ceramic, with hoses of 1,617 and 700 mm, and the HM184 auto flush motor lets the WASHLET trigger the flush. TOTO’s installation manual (PDF) classes WX1 as Class I equipment, so the supply must be earthed. It also requires a residual current device of 30 mA or less, all-pole disconnection in the fixed wiring and wiring rated 7 A or more. The cold-water supply must be between 0 and 35 °C, and the room between 0 and 40 °C. Have the electrical work carried out by a qualified electrician.
Products in this category
NEOREST WX1: questions
Which frame and parts does NEOREST WX1 need?
TOTO specifies NEOREST WX1 with the TOTO WC frame (WH183ET), the HM183 connecting set, the HM184 auto flush motor and an MB177EM push plate. A complete installation kit contains all of them with the WASHLET and pan, so nothing needs to be matched separately.
Can NEOREST WX1 still be flushed during a power cut?
Yes. TOTO’s instruction manual says to press the button on the flush panel, the push plate on the wall, to flush when the power is off.
How many people can save their own settings?
Up to four. Each person registers a preferred water pressure, wand position and warm-water temperature, and selects their register number on the remote control before washing.
Do the matte finishes have different features from gloss white?
No. The matte WASHLET (TCF95580GEU) has the same functions and dimensions as the gloss white TCF95180GEU. Each finish has its own pan and its own MB177EM push plate, so the three parts are ordered in the same finish.
How should a NEOREST pan be cleaned?
The CEFIONTECT glaze needs only a clean, damp cloth for regular cleaning; microfibre is suitable. TOTO advises cleaners without abrasives, mildly acidic for limescale.
Need help choosing?
Call us on 0113 35 775 15 and we can check pan, frame and power requirements before you order.
Specifications from TOTO Europe: the WASHLET technical details and functions overviews, product fact sheets and the TOTO UK price list.
